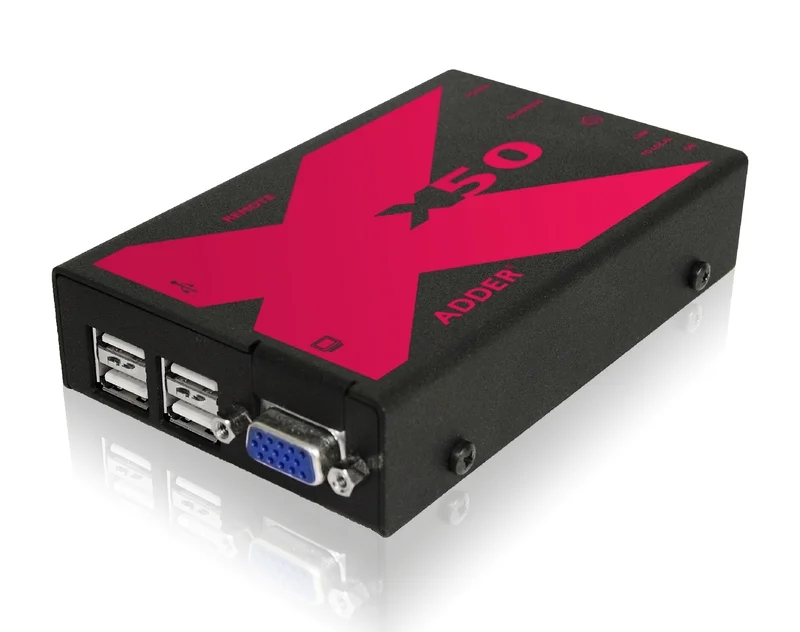

AdderLink X50 series
Transparent low/full speed USB 2.0, VGA video and audio extender over CATx cable up to 50m
- Extends video and audio across a single CATx cable
- USB support (USB 1.1 and 2.0) with 4 port integrated USB hub
- High resolution video quality (up to 1920 x 1200) at distances up to 50m
- Use as stand alone or rackmount 16 modules (8 for multiscreen model) across 2U
- RS232 and dual VGA ports with multiscreen model
- Powered remotely
- All metal construction
The AdderLink X50 series comprises audiovisual + USB extenders delivering high video resolutions and quality audio using standard CAT5 (or higher) cables and USB cables.
This series offers USB peripheral control function (including keyboard and mice control) at distances up to 50m. The X50-MultiScreen model supports dual display and offers RS232 extension for interactive display control applications.
Typical applications include remote touchscreen or computer control and multiple interactive kiosks in pubs.
With all KVM products, Amplicon recommends the use of shielded CATx cabling.
- KVM Category
- Extend
- Distance
- 10 m
- 30 m
- 50 m
- Max Distance
- 50 m
- Connectivity
- VGA
- Serial
- AdderLink-x50-x50ms-datasheet
- Datasheet 950.34 KB
Models available (2)
AdderLink X50 USB
Code 96080952
AdderLink X50 USB video + audio extender transmitter + receiver pair to 50M
AdderLink X50 USB Dual
Code 96080953
AdderLink X50 USB Dual video multiscreen + audio extender transmitter +receiver pair RS232, to 50M UK mains lead
