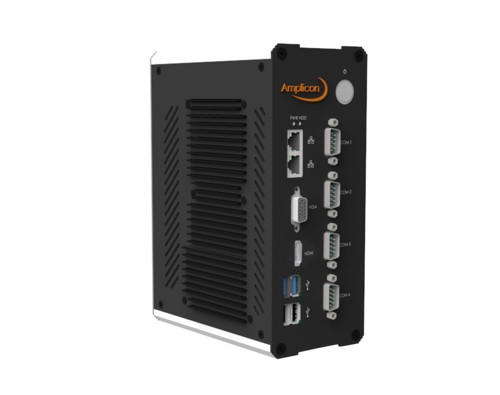

Amplicon Impact-D 100AL-A series

Compact & light DIN Rail PC, Intel ATOM E3900 processors, -40°C to 75°C

  • Atom™ processor E3900 product family
  • Wi-Fi connectivity
  • Supports up to 8GB DDR3L RAM
  • Supports USB 3.0 and SATA III
  • DC powered (via screw terminal)
  • Windows 10 and Ubuntu 20.04 support
  • -40°C to +75°C Operating temperature

The Amplicon Impact-D 100AL-A fanless embedded PC features the Intel® ATOM™ E3900 generation processors, supported by high bandwidth DDR3L memory, and is a perfect solution for a DIN Rail PC.

With an extremely compact design weighing 1.3kg, this unit is ideal for installations where space is at a premium. The tiny footprint still allows for rich I/O along with added support for Wi-Fi connectivity. All systems come with free software for remote access, monitoring and control.

The Apollo Lake processors provide 4K immersive graphics and fast video acceleration, making the Impact-D 100AL an exceptional solution for the most demanding media output tasks.

The Impact-D 100AL-A embedded PC system is suited to applications in markets such as transportation, security and automation.

Learn more about the Amplicon Industrial Embedded PC range.

Amplicon has expanded the successful Impact-D range with the new Impact-D 1100A series and the Impact-D 100EL-A series, two high performance PC’s featuring next-gen processors and a wide range of innovative IoT and AI technologies. Learn more about the new Impact-D’s

CPU
ATOM®
Memory
4 GB
OS Support
Linux
Windows 10
Windows 10 IoT
Expansion
M.2
Storage
64GB SSD
Memory Type
DDR3
CPU Generation
Apollo Lake
CPU Cores (Physical)
4
Max Memory
8 GB
Mounting
DIN Rail
Wall
Brand
Impact-D
Impact-E_D_T_P_roadmap
Roadmaps 3.36 MB

Models available (2)
