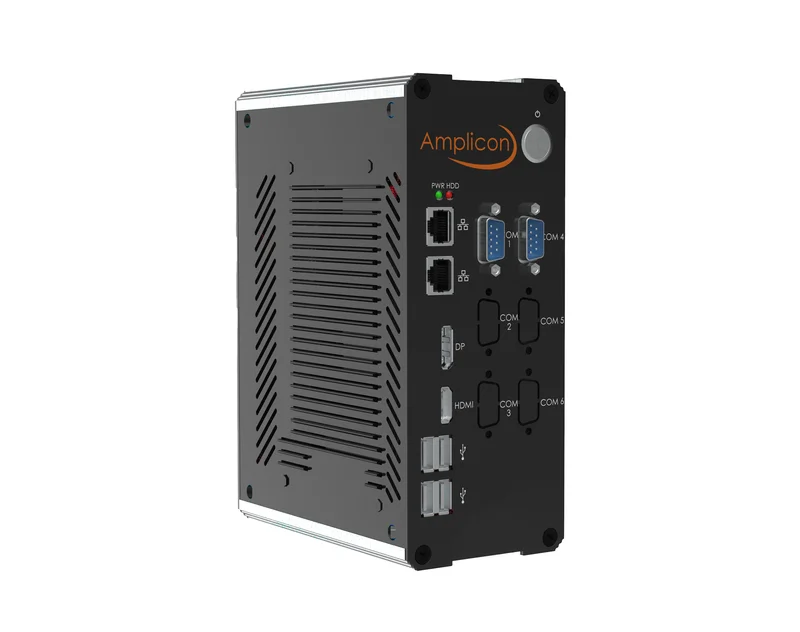

Impact-D 101EL-A Series - 97221600
Small form factor and light weight with Intel Atom® x6425E, 8GB RAM, 128GB MLC SSD
- Intel® Atom™ Elkhart Lake processors
- IoT Edge Ready
- Optional Wi-Fi
- Supports up to 32GB DDR4 RAM
- Up to 6 serial ports
The Amplicon Impact-D 100EL-A series of embedded computers features the Intel Elkhart lake series of processors. Designed from the ground up for the industrial market the Elkhart lake Processors includes features such as Functional safety and Time Sensitive Networking (TSN).
Low power yet powerfull the Impact-D 100EL-A is suitable for a range of tasks on the edge such as data aquisition, with 4K60 these systems are great for applications requiring high qualtiy video output.
With options for up to 6 serial ports the Impact-D 101EL-A is capable of interfcing with a rnage of serial based I/O devices allowing for edge processing for legacy equipment.
With optional WI-FI the Impact-D 100EL-A can operate away from the wired network allowing you to extend the reach of your network.
Learn more about the Amplicon Industrial Embedded PC range.
To learn more about the new Impact-D 101EL-A series visit the product highlights page
- CPU
- ATOM®
- Memory
- 8 GB
- OS Support
- Windows 10
- Windows 10 IoT
- Windows 11
- Linux
- Expansion
- M.2
- Storage
- 128GB SSD
- Memory Type
- DDR4
- CPU Generation
- Elkhart Lake
- CPU Cores (Physical)
- 4
- Max Memory
- 32 GB
- Mounting
- DIN Rail
- Brand
- Impact-D
- Impact-D 101EL-A Series Datasheet
- Datasheet 6.77 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
| Code: 96160455 |
Accessory - 12V adapter (requires 90924535)
Accessory - 12V adapter (requires 90924535) For impactD series add Phoenix connector |
| Code: 91230000 | Cable Accessory - Serial cable for Impact-D 101EL-A |
