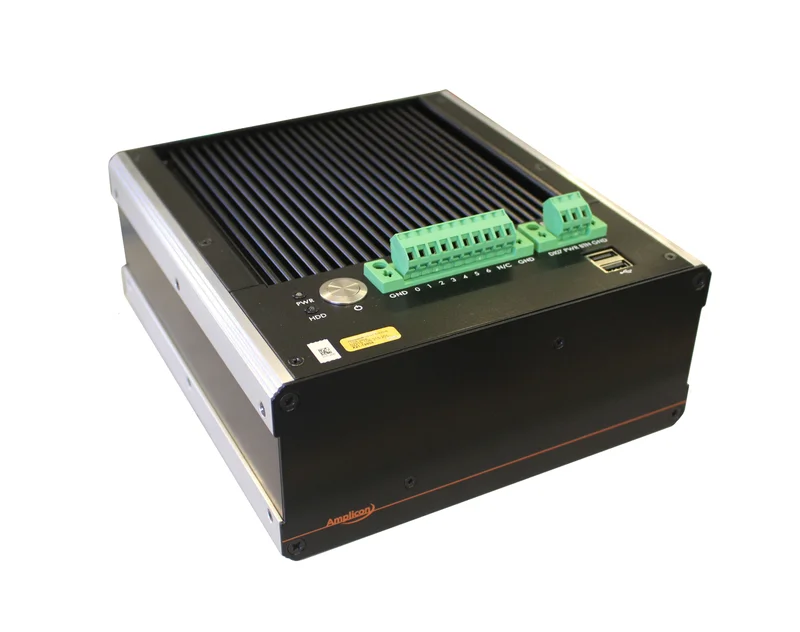

Impact-E 280DIO - 97201269
i5-8500T, 16GB DDR4, 256GB SSD, with 8 x DIO and remote ON/OFF
- 8th Generation iCore processor
- Supports up to 32GB DDR4 RAM
- Supports USB 3.0 and SATA III
- supports 2 independant displays (DP++/HDMI)
- 8 DIO and Remote On/Off
- DC powered by either screw terminal or jack
The Amplicon Impact-E 280-DIO series of fanless embedded PC features the Intel® 8th and 9th generation iCore processors, supported by high bandwidth DDR4 memory.
The Impact-E 280 embedded PC system has a high quantity of I/O broken out to the rear as well as eight Digital I/O broken out to the lid. Designed with the ability to be installed deep inside equipement the E280-DIO has a remote On/Off capability.
Being of a compact design and weighing less than 5kg, this unit is ideal for installations where space is at a premium. This compact system allows expansion for additional solid state or mechanical hard drives mPCIe and M.2 modules.
Learn more about the new Impact-E range from Amplicon.
Learn more about the Amplicon Industrial Embedded PC range.
- CPU
- Core i5
- Memory
- 16 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- M.2
- Storage
- 128GB SSD
- Memory Type
- DDR4
- CPU Generation
- 8th (Coffee Lake)
- CPU Cores (Physical)
- 6
- Max Memory
- 32 GB
- Mounting
- Wall
- Brand
- Impact-E
- Impact-E 280DIO Datasheet
- Datasheet 5.31 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
| Code: 17140883 | Accessory - Impact-E DIN mount kit |
| Code: 96160455 |
Accessory - 12V adapter (requires 90924535)
Accessory - 12V adapter (requires 90924535) For impactD series add Phoenix connector |
| Code: 91170809 | S/W - Windows 10 IoT Enterprise LTSB 2016 (Value Level) |
| Code: 91201248 |
S/W - Windows 10 IoT Enterprise LTSC 2019 (Value Level)
S/W - Windows 10 IoT Enterprise LTSC 2019 (Value Level) Socket Celeron, i3 and i5 |
