Impact-E 481 - 97200119

2 x PCIe, 2 x PCI expansion, 8500T, 4GB DDR4, 128GB SSD Basekit Iss A

  • 8th Generation iCore processor
  • Wi-Fi connectivity
  • Supports up to 32GB DDR4 RAM
  • Supports USB 3.0 and SATA III (JBOD, RAID 1/0)
  • Supports 2 independant displays (DP++)
  • Multiple expansion options
  • DC powered (via screw terminal)

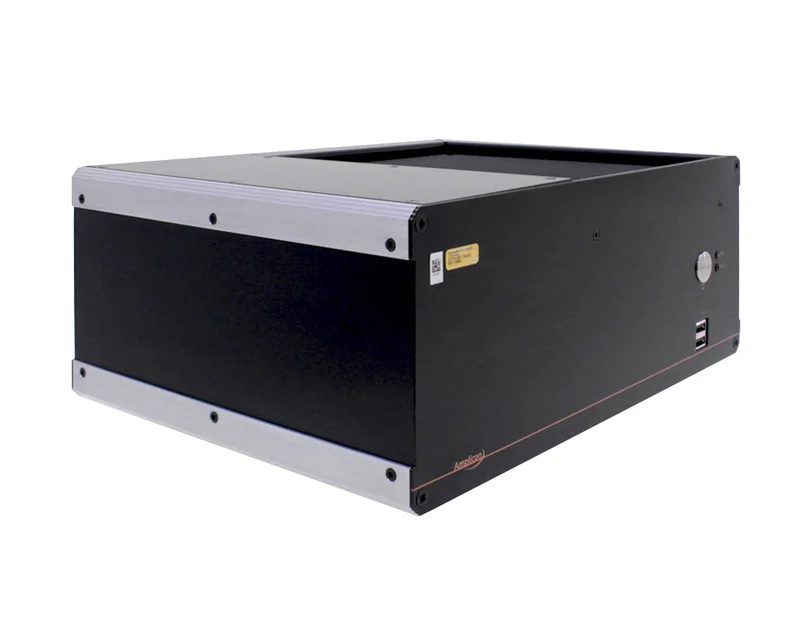

The Amplicon Impact-E 480 fanless embedded PC is available with the Intel® 8th generation iCore processors. Memory support includes high bandwidth DDR4 memory.

With 4 expansion slots, this system builds on the reliability and stability of the Impact-E 280 and 380. The Impact-E 480 supports 2 x 2.5" HDD/SSD configured as RAID 1/0, or as single drives. This unit also offers optional expansion for 2 x M.2.

With WI-FI capability this unit alows you to have a powerful PC away from the rest of the network.

The Impact-E 480 embedded PC system is suited to applications in various markets such as transportation, security and automation.

Learn more about the Amplicon Industrial Embedded PC range.

CPU
Core i5
Memory
4 GB
OS Support
Linux
Windows 10
Windows 10 IoT
Expansion
PCI
M.2
PCIe
Storage
128GB SSD
Memory Type
DDR4
CPU Generation
8th (Coffee Lake)
CPU Cores (Physical)
6
Max Memory
32 GB
Mounting
Wall
Brand
Impact-E
Impact-E 481 Datasheet
Datasheet 1.54 MB
Impact-E_D_T_P_roadmap
Roadmaps 3.36 MB
