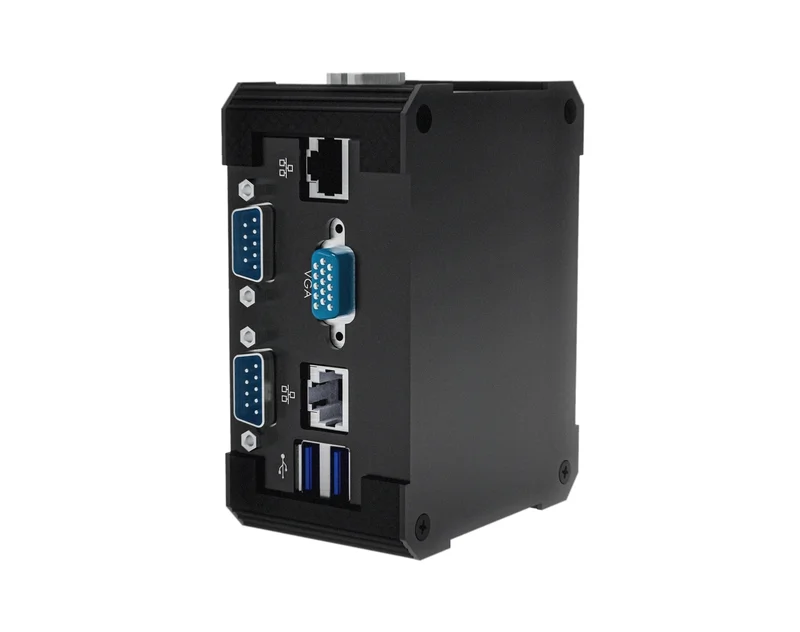

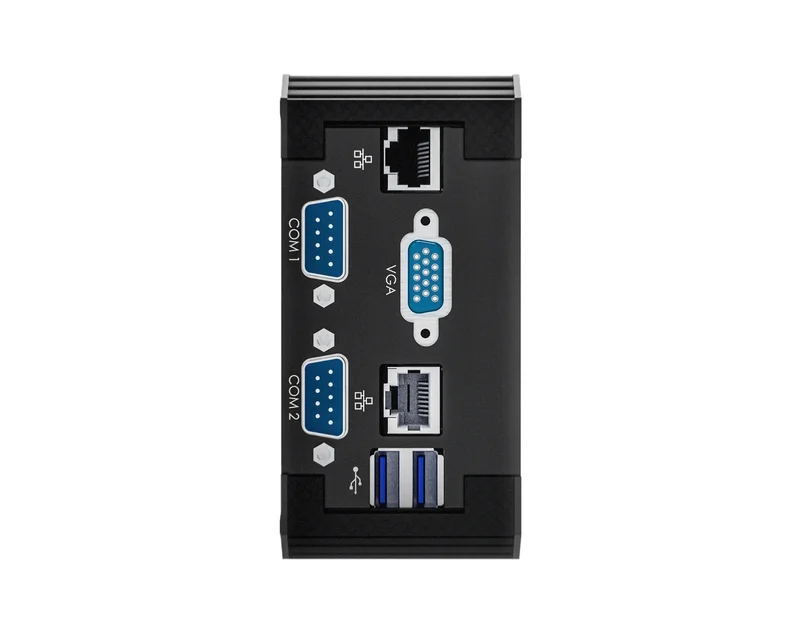

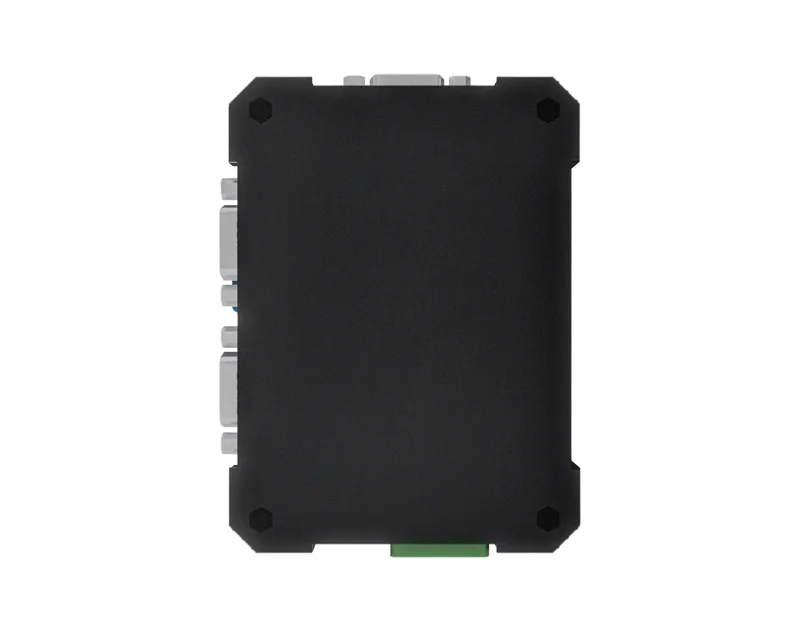

Impact-P 101D - 97230386
Intel Atom® X5-E3930 CPU, 4GB DDR3, 64GB M.2 SSD Base-Kit IssA
- Atom™ processor E3900 product family
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
- DIN Rail mount
- Multiple serial port options available
- PoE PD variant available
The Amplicon Impact-P 100D is a series of ultra small form factor IoT edge ready embedded computers, utilising the superb Intel Intel Atom® x5-E3930 Apollo Lake processor.
Featuring a high performance Intel Atom processor, intense media processing capabilities, and wide operating temperature range, the Impact-P 100D is the perfect choice for applications with demanding connectivity and computing power requirements even when space is at a premium.
It's impressive connectivity features include options for multiple Ethernet, Serial, USB, 4K media display ports and more.
Due to its carbon fibre composite and aluminium construction, these units are tough and lightweight, allowing them to be mounted nearly anywhere.
The new Impact-P 100D features an ultra-compact design with enhanced connectivity and high performance Intel Atom processors. Learn more about the new Impact-P 100D series.
- CPU
- ATOM®
- Memory
- 4 GB
- OS Support
- Windows 10 IoT
- Linux
- Storage
- 64GB M.2
- Memory Type
- DDR3
- CPU Generation
- Apollo Lake
- Max Memory
- 8 GB
- Max Operating Temperature
- 70 °C
- CPU Cores (Physical)
- 2
- Mounting
- DIN Rail
- Brand
- Impact-P
- Impact-P 101D Datasheet
- Datasheet 9.05 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
| Code: 90924535 | Mains lead: UK plug (5A fuse) to IEC320 socket, 1.8m long in black |
| Code: 96160455 |
Accessory - 12V adapter (requires 90924535)
Accessory - 12V adapter (requires 90924535) For impactD series add Phoenix connector |
