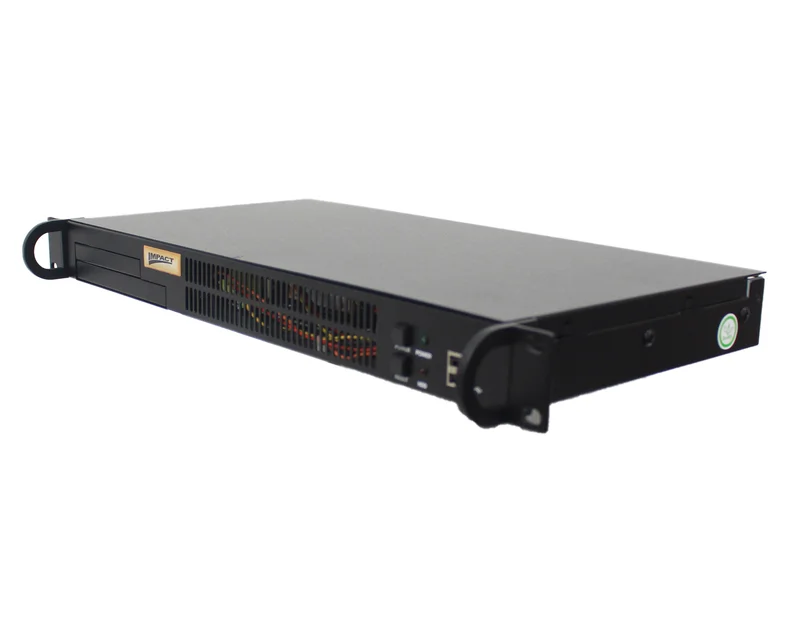

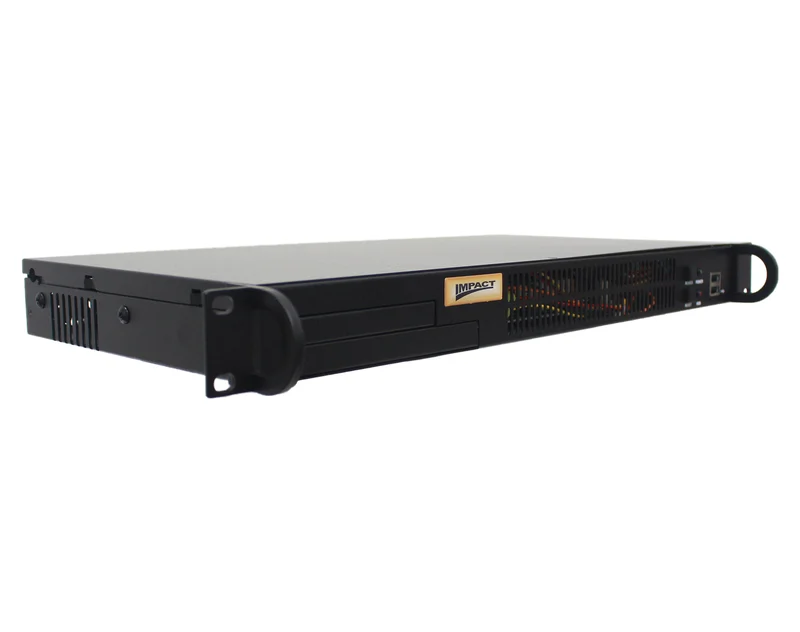

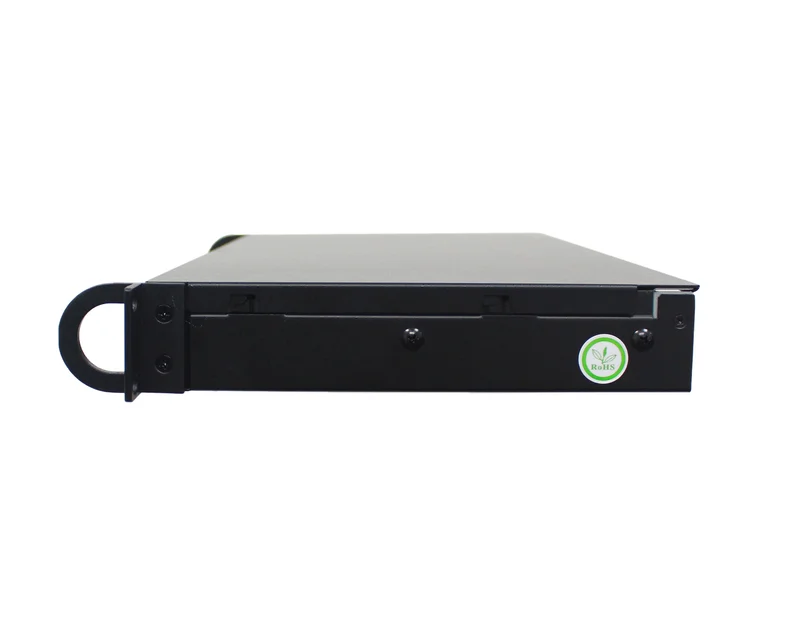

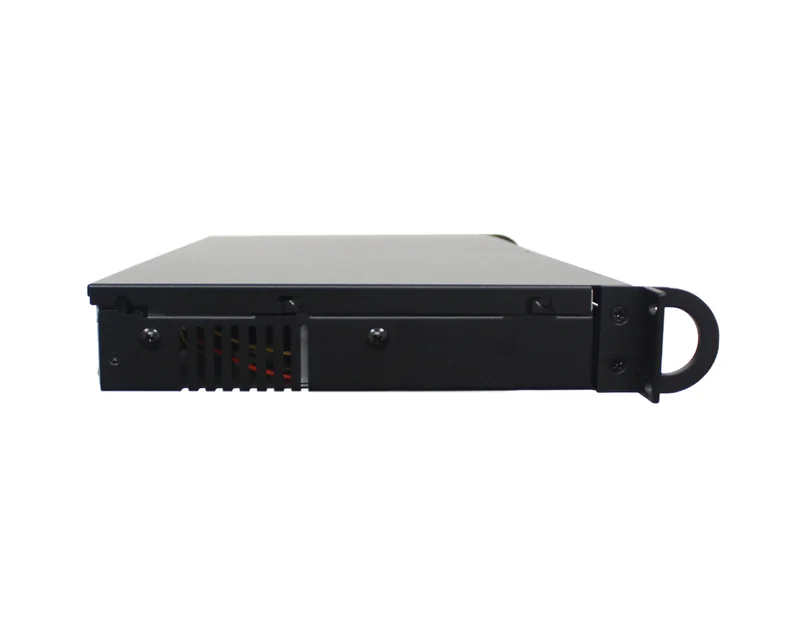

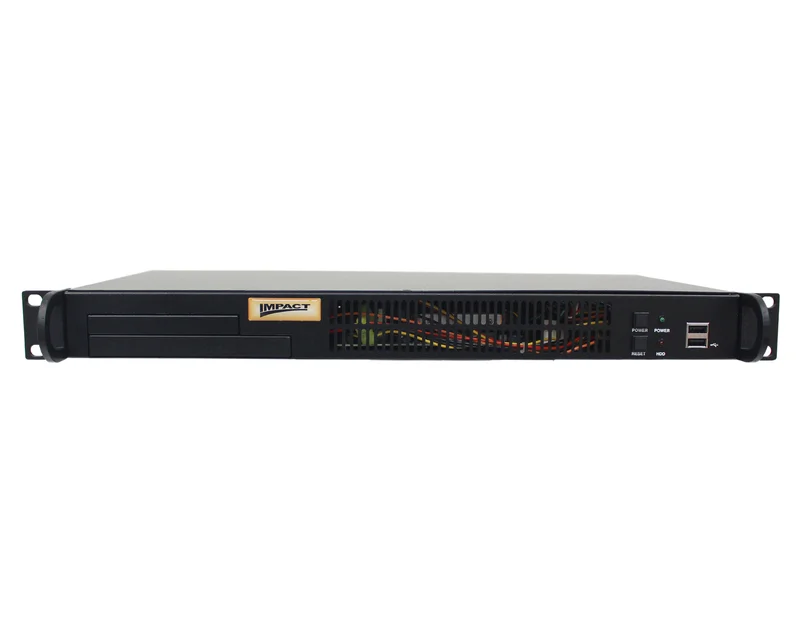

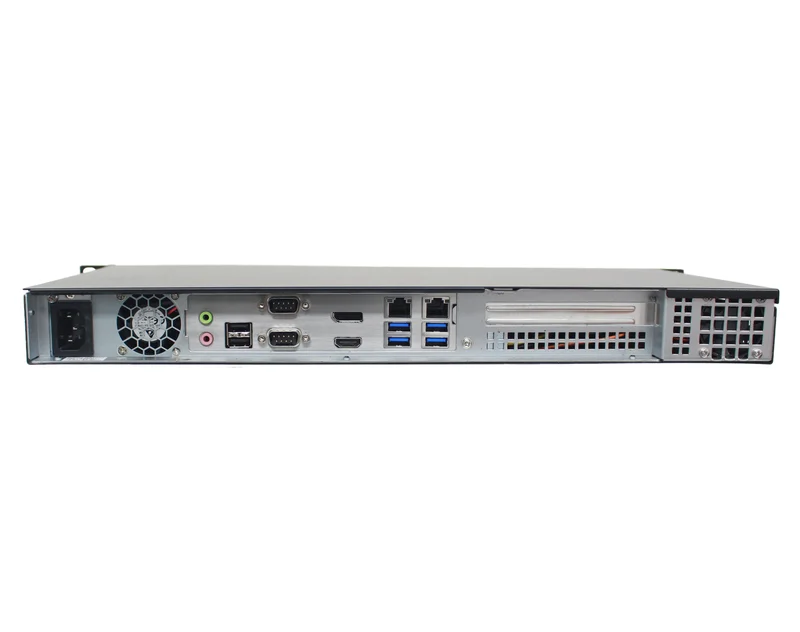

Amplicon Impact-R 1000 series
1U rackmount industrial motherboard based computer. Core-i processor power. Ultra short depth.
- Ultra short depth (220mm)
- 8th Generation iCore processor
- Designed for harsh environments
- Extensive burn-in factory testing
- 3 year warranty
- 10 to 15 year lifecycle
The Amplicon Impact-R 1000 series comprise of high density 1U rackmount industrial computer systems. Every available internal space has been utilised to maximise both the systems expansion and capacity.
With an ultra short 220mm depth, this industrial PC is ideal for applications requiring a short depth cabinet or where space is a premium allowing you to mount other devices behind the Impact-R 108x.
These shallow depth PC's feature integrated graphics and generous drive expansion. The Impact-R models are based on the Intel® chipset technology, providing integrated RAID 0, 1 and Remote Management (iAMT).
Like all our Impact-R systems, they can be customised to your specific requirements.
Amplicon's systems are able to offer a 15 year life cycle based on the Intel IoTG roadmap.
Learn more about the Amplicon short depth computer range
Learn more about the Amplicon Industrial Rackmount PC range.
360 view available on Amplicon YouTube Channel.
- Chassis Size
- 1 U
- CPU
- Core i5
- Core i7
- Memory
- 8 GB
- OS Support
- Linux
- Windows 10
- Expansion
- PCIe
- M.2
- Storage
- 256GB M.2
- Memory Type
- DDR4
- Chipset
- Intel® Q370
- CPU Generation
- 8th (Coffee Lake)
- CPU Cores (Physical)
- 6
- Max Memory
- 32 GB
- Max Operating Temperature
- 60 °C
- Mounting
- Rack
- Chassis depth
- Shallow depth
- Brand
- Impact-R
- Impact-R_1080
- Datasheet 2.48 MB
Models available (2)
Impact-R 1083
Code 97210515
Impact-R 1084
Code 97210516
