Impact-R 1110F - 97170965
Impact-R 1110F - Intel® ATOM E3950, 6 DB9, 1U Industrial Computer Base Kit Iss F
- Ultra short depth (184.50mm)
- Intel® Atom™ Apollo Lake processors
- Up to 8GB DDR3L Memory
- Removable rack ears
- mPCIe (full length)
- 15 year life cycle

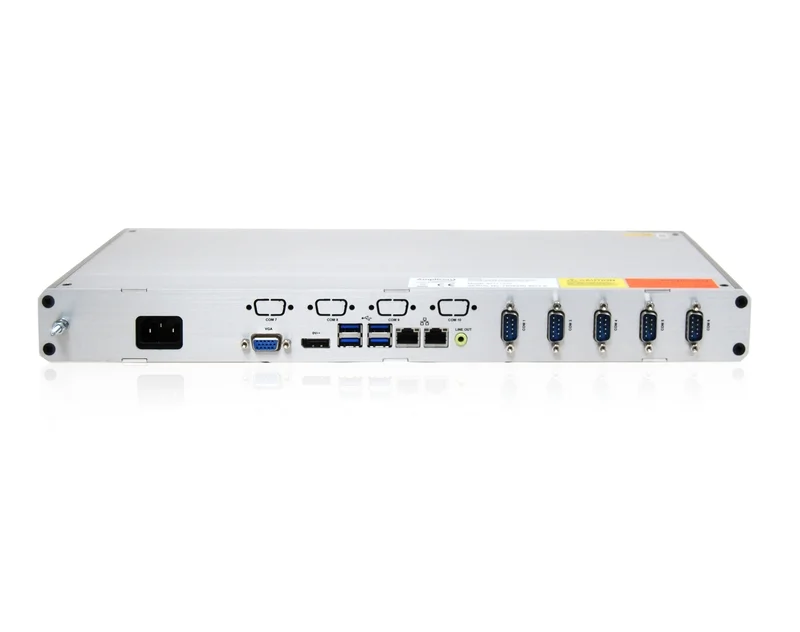

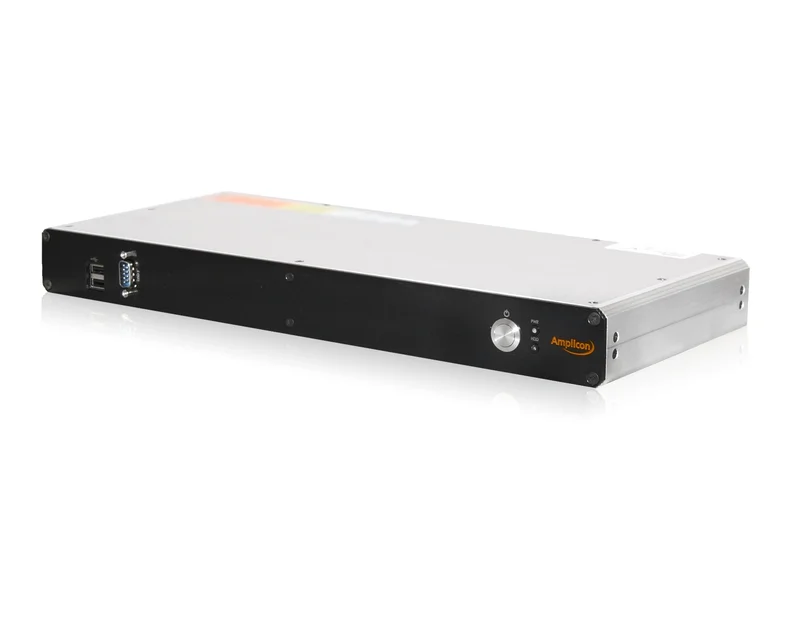

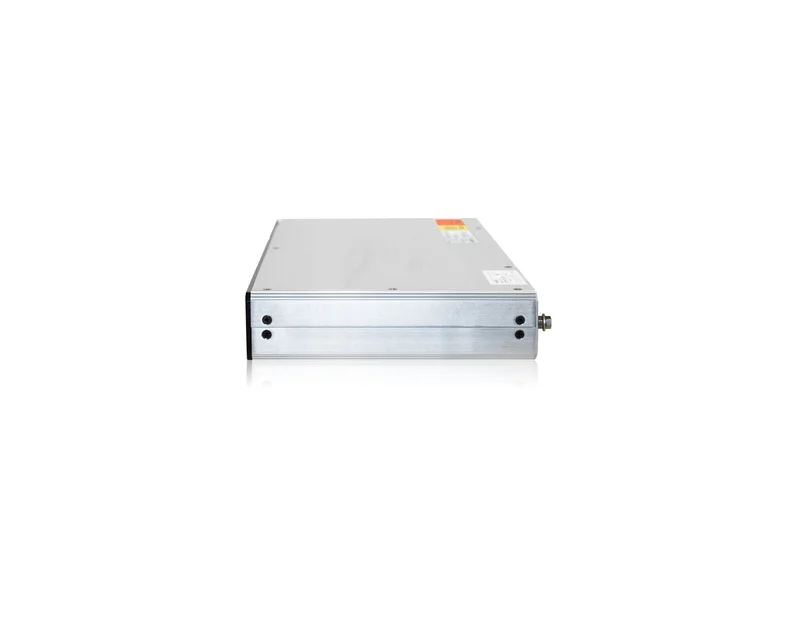

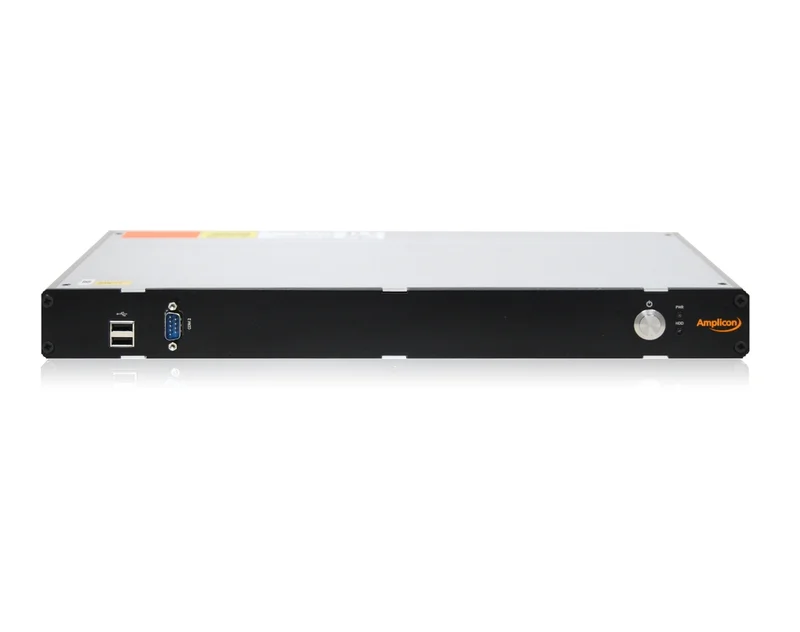

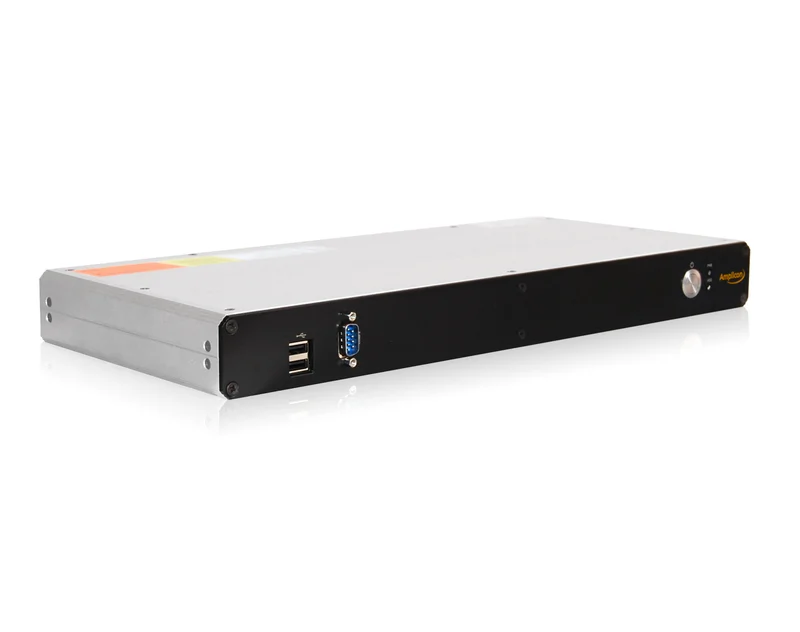

The Amplicon Impact-R 1110F Industrial rackmount PC is an ultra short-depth system, completely fanless and powered by the Intel® ATOM™ Apollo Lake processor.
With an ultra short 184.50mm depth, this industrial PC is ideal for applications requiring a short depth cabinet or where space is a premium allowing you to mount other devices behind the Impact-R 108x models.
With options for multiple serial communication ports, the Impact-R 1110F can offer up to a total of ten DB9 ports with a mixture of RS232/422 and RS485, allowing for true flexibility as well as legacy support.
The Impact-R rackmount PC utilises industrial components, which provide revision control. Our production processes are controlled under ISO 9001:2015 with every system undergoing a full diagnostic burn-in test prior to shipment.
Learn more about the Amplicon short depth computer range
Learn more about the Amplicon Industrial Rackmount PC range.
360 view available on Amplicon YouTube Channel
- Chassis Size
- 1 U
- CPU
- ATOM®
- Memory
- 2 GB
- OS Support
- Windows 10
- Windows 10 IoT
- Linux
- Expansion
- M.2
- mPCIe
- Storage
- 32GB SSD
- Memory Type
- DDR3
- CPU Generation
- Apollo Lake
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Max Operating Temperature
- 60 °C
- Mounting
- Rack
- Type of Serial Ports
- 6xDB9
- Chassis depth
- Shallow depth
- Brand
- Impact-R
- Impact-R 1110F Datasheet
- Datasheet 1.32 MB
| Code: 91170808 | S/W - Windows 10 IoT Enterprise LTSB 2016 (Entry Level) |
