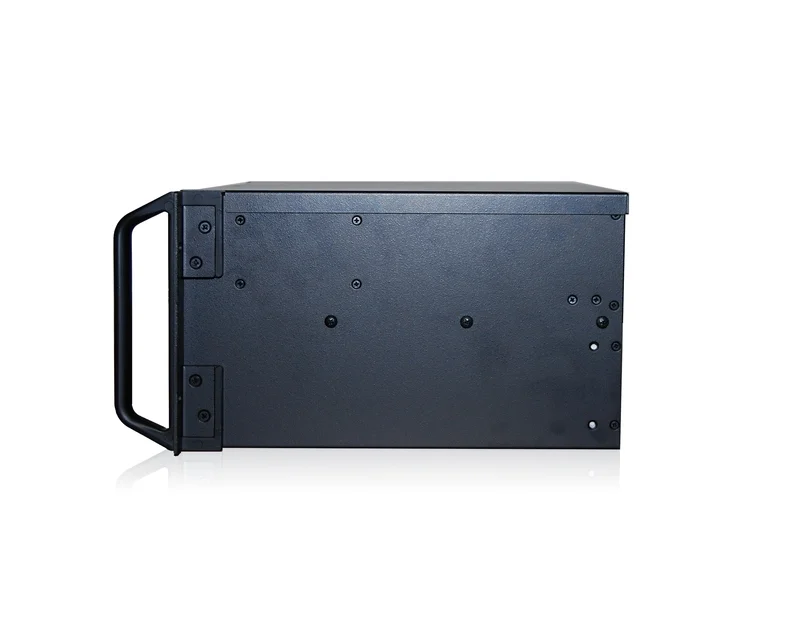

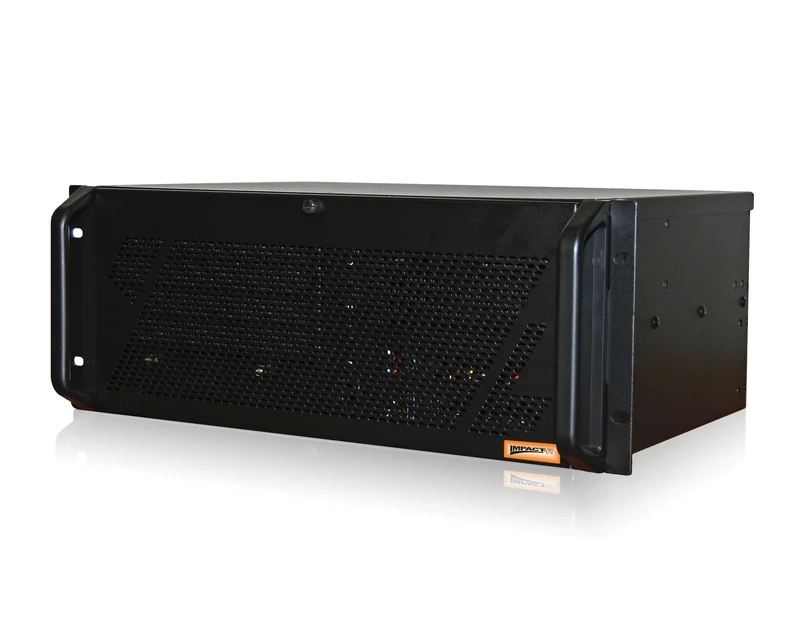

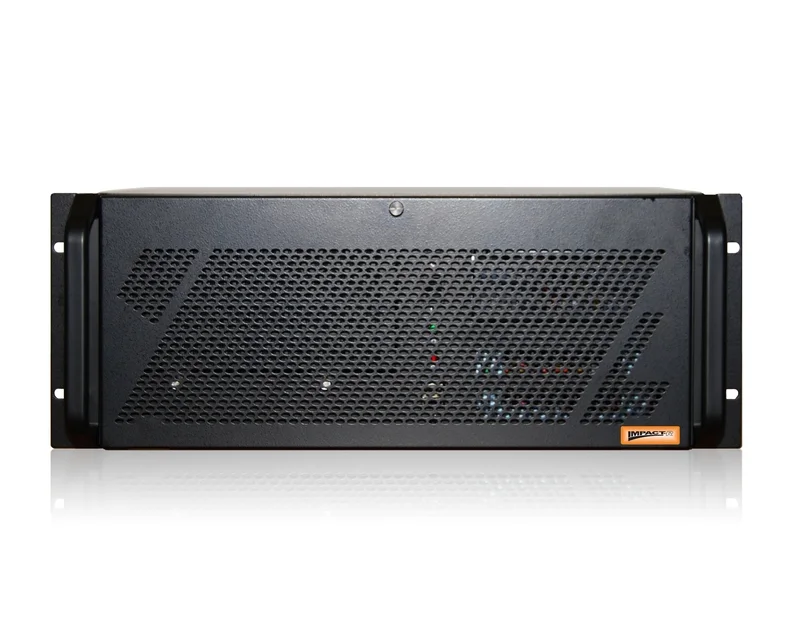

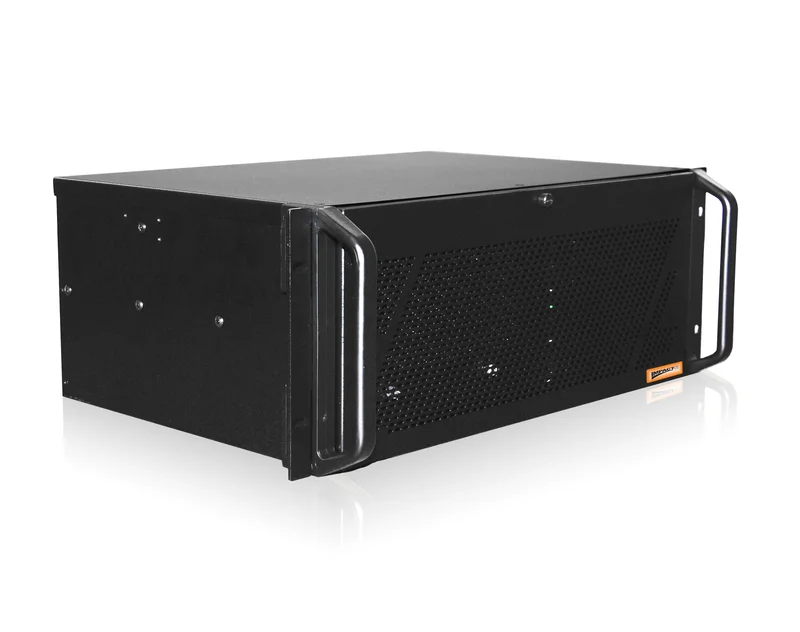

Amplicon Impact-R 4000S series

4U industrial motherboard based computer. Core-i processing power. Shallow depth

Short depth (302mm)
8th, 9th and 10th gen Intel processors
Supports Intel Core i5/i7 processors
Two front USB ports
15 year life cycle
3 year warranty package

The Amplicon Impact-R 4000S industrial PC incorporates industrial motherboards to achieve hardware life cycles of up to five years.

With only 302mm depth, the Impact-R 4000S systems have been specifically designed for limited space environments. Despite the compact size, the systems offer outstanding high performance using the powerful Intel® Core™ processor technology.

These industrial PC's provide a wide performance range to meet different application requirements. As with all our industrial computing systems, they can be tailored to meet your requirements.

Amplicon's systems are able to offer a 15 year life cycle based on the Intel IoTG roadmap. 8th, 9th and 10th generation processor options are available.

Learn more about the Amplicon short depth computer range

Learn more about the Amplicon Industrial Rackmount PC range.

360 view available on Amplicon YouTube Channel

Chassis Size: 4 U
CPU: Core i5; Core i7
Memory: 2 GB; 8 GB
OS Support: Linux; Windows 10; Windows 10 IoT; Windows 7; Windows Emb Std 7
Expansion: PCI; PCIe; mPCIe; M.2
Memory Type: DDR3; DDR4
Storage: 256GB M.2; 500GB HDD
Chipset: Intel® H310; Q470E; Intel® Q87; Intel® Q370
CPU Generation: 4th (Haswell); 8th (Coffee Lake); 9th (Coffee Lake refresh); 10th (Cometlake)
CPU Cores (Physical): 6; 8
Max Memory: 32 GB; 64 GB; 128 GB
Max Operating Temperature: 60 °C
Mounting: Rack
Chassis depth: Shallow depth
Brand: Impact-R

Impact-R_4080S_H310: Datasheet 319.40 KB
impact-r-roadmap: Roadmaps 181.18 KB
