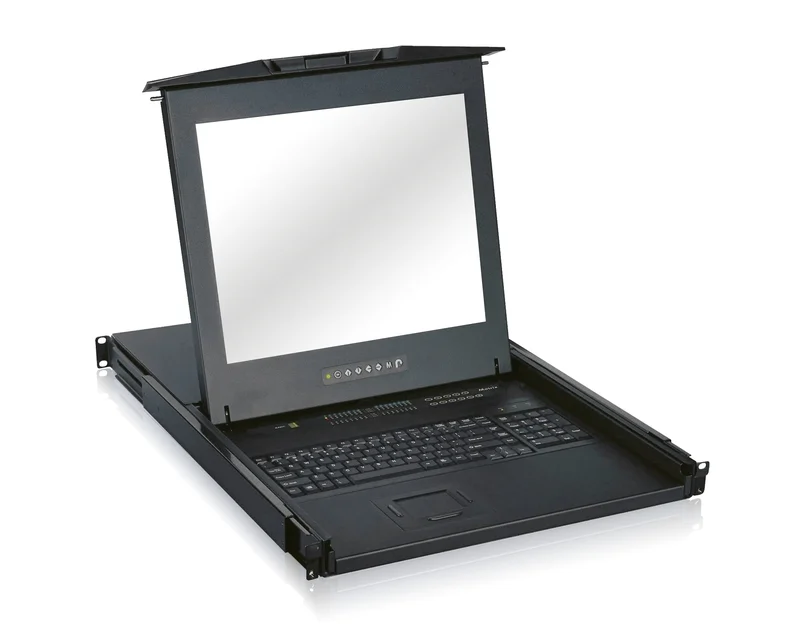

Amplicon KwikDraw-A KVM/VGA series
1U Rackmount LCD console, VGA, KVM functionality
- Sleek aesthetic design.
- Easy one-man installation.
- 104-key keyboard with integrated touchpad.
- Excellent viewing angles.
- Light Weight
- Multi language keyboard options available.
The Rackmount analogue KVM console drawers offer a varied screen sizes and resolutions to suit any application need. Available in 17" and 19" with a clean, crisp look and feel with either an 8 port or 16 port KVM.
All units offer a low power consumption for those green in mind and a low 5W standby.
Easy installation and sleek aesthetic design make this a perfect console of choice.
Options are available without the KVM functionality.
Learn more about the Amplicon Rackmount console drawers range.
- Screen Count
- 1
- Screen Size
- 17 inch
- 19 inch
- Resolution
- Standard Def
- KVM Category
- Switch
- Mounting
- Rack
- KVM Ports
- 8
- 16
- KVM Option
- Yes
- Type
- Keyboard and Screen
- Kwikdraw-A_191-8-16
- Datasheet 6.76 MB
- kwikdraw-a_171-8-16
- Datasheet 310.24 KB
Models available (4)
KwikDraw-A 171-8
Code 96121584
KwikDraw-A 171-8 : UK 17" TFT LCD Monitor, 8 port KVM, KB & Touchpad, 1U rackmount sliding (AC)
KwikDraw-A 191-8
Code 96121586
KwikDraw-A 191-8 : UK 19" TFT LCD Monitor, 8 port KVM, KB & Touchpad, 1U rackmount sliding (AC)
KwikDraw-A 171-16
Code 96121585
KwikDraw-A 171-16 : UK 17" TFT LCD Monitor, 16port KVM, KB & Touchpad, 1U rackmount sliding (AC)
KwikDraw-A 191-16
Code 96121587
KwikDraw-A 191-16 : UK 19" TFT LCD Monitor, 16port KVM, KB & Touchpad, 1U rackmount sliding (AC)
