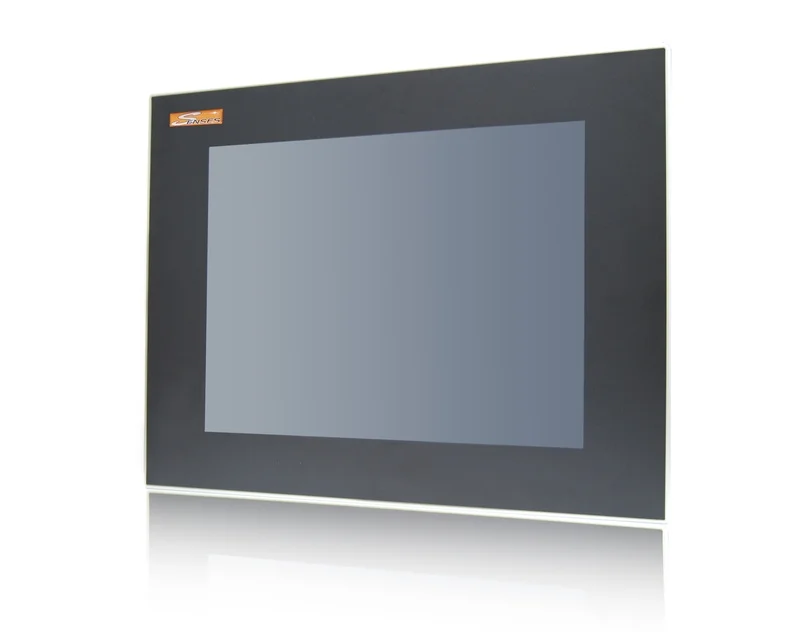

Senses 5417 Panel PC - 97170992
17" display, Intel® ATOM E3845, 2GB RAM, 64GB SSD 10-point PCAP touch screen Base Kit - Iss B
- Projected Capacitive Multi-Touch (10 points)
- DC 12V ~ 24V input with 3-pin terminal block connector (optional)
- Wide Operating temperature
- IP65 rated front
- Long Life Cycle
The Senses 5400 Industrial Panel PC takes advantage of Intel® Atom™ E3800 family to operate under extremely hot and cold conditions.
The operating temperature can be as low as -25°C up to 70°C with its fan-less design.

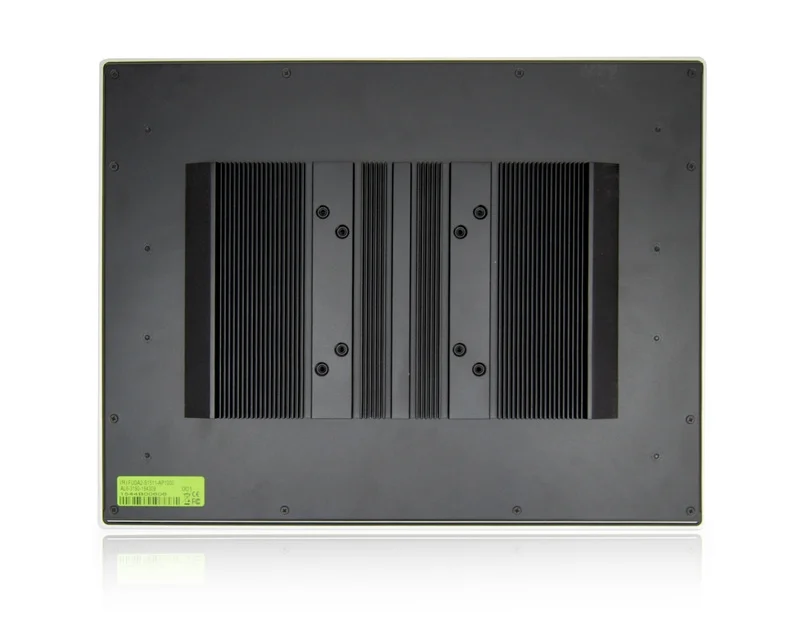

The cable-less structure helps to optimise thermal dissipation as well as makes it more durable in rugged environments.
Equipped with a high resolution panel and a sleek, responsive, multi-touch screen and an IP65 rated front bezel and true-flat design.
15 year life cycle.
Learn more about the Amplicon Industrial Panel PC range
- Screen Size
- 17 inch
- Touch screen
- Projected capacitive touch
- CPU
- ATOM®
- CPU Generation
- Bay Trail
- OS Support
- Windows 10
- Windows 10 IoT
- Windows 7
- Windows Emb Std 7
- Linux
- Memory
- 2 GB
- Memory Type
- DDR3
- Storage
- 32GB SSD
- Expansion
- mPCIe
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- Panel
- VESA
- Senses 5417 Panel PC Datasheet
- Datasheet 1.89 MB
- senses-roadmap
- Roadmaps 8.02 MB
| Code: 91170808 | S/W - Windows 10 IoT Enterprise LTSB 2016 (Entry Level) |
| Code: 91170984 |
Accessory - I/O expansion, Option 1 - 2 x RS232/422/485, 1 x RS232
Accessory - I/O expansion, Option 1 - 2 x RS232/422/485, 1 x RS232 Senses 5412/15/17/19 |
