Ventrix 2064-E2.2 - 57160469
Ventrix 2064-E2.2 - 2x PCI, 2x PCIe, Core i7 Quad Core, Industrial Computer BaseKit Iss H
- PCI and PCI Express expansion options available
- Designed for 24/7 operation
- Expansion for 4 plug-in cards
- Shallow depth - 450mm
- 3 year warranty package
- 5 to 15 year lifecycle

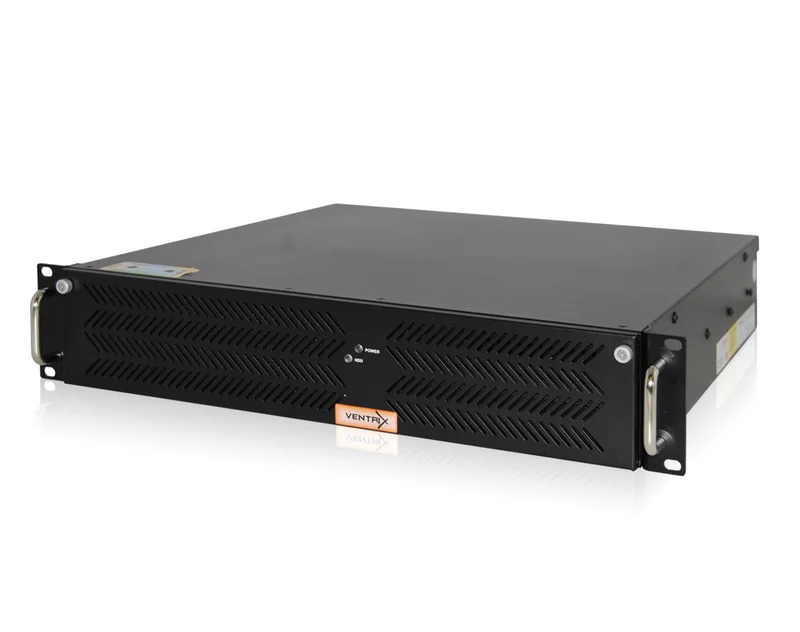

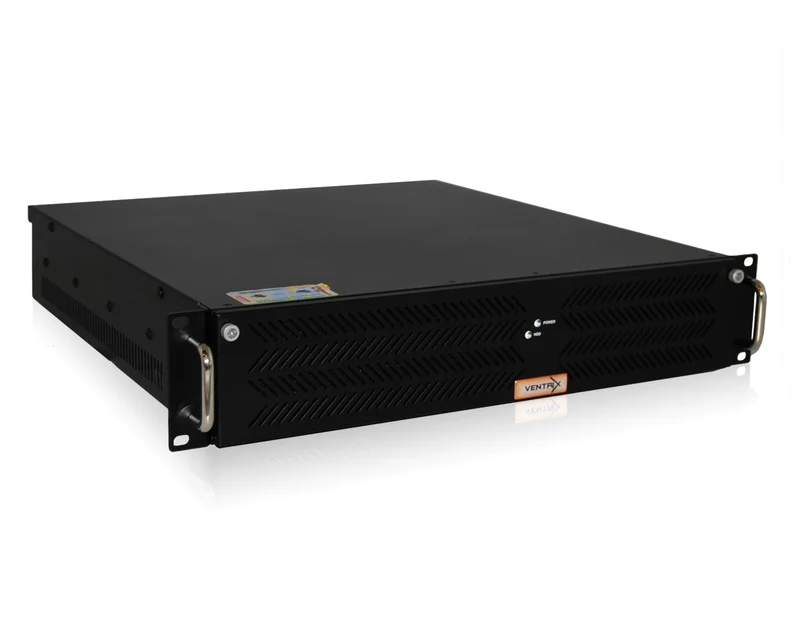

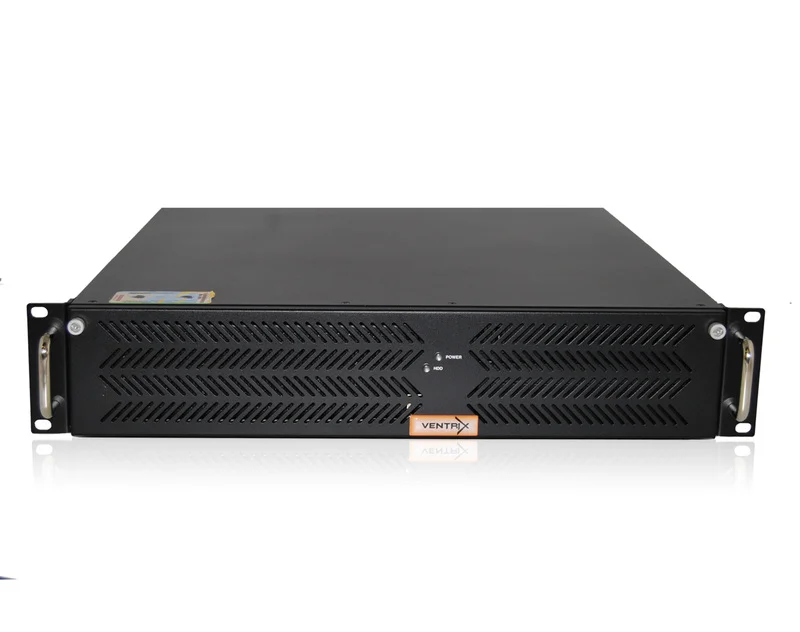

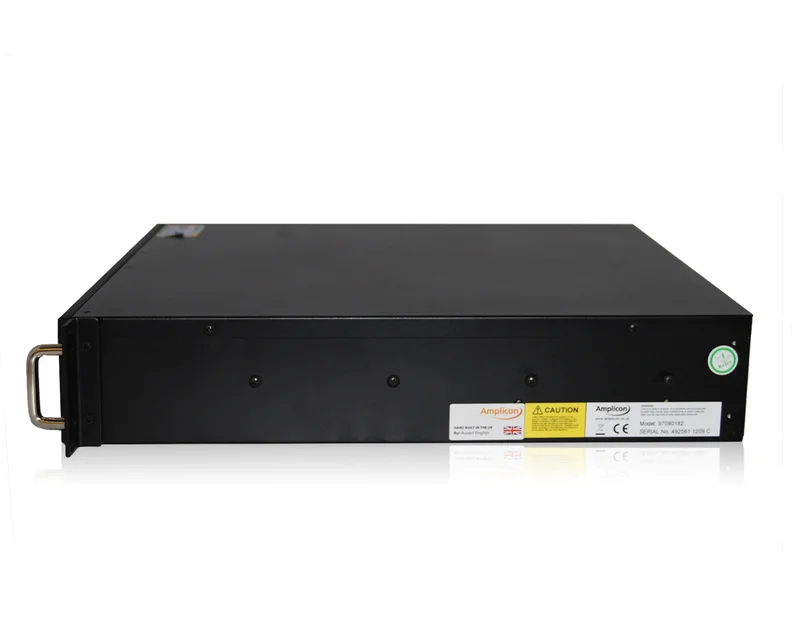

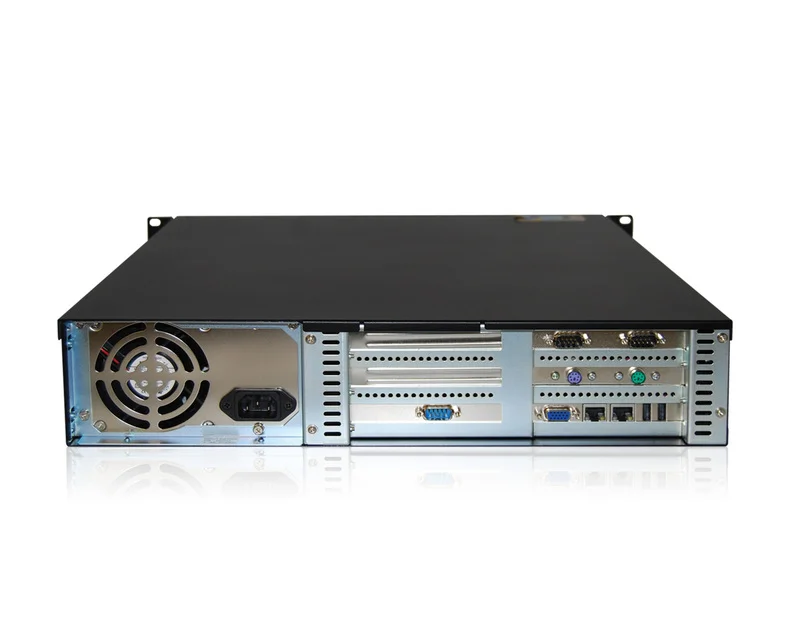

If you need an industrial rackmount computer with card expansion, but have a limited availability of rack space, the Amplicon Ventrix 2000 2U rackmount PC is the ideal solution for you.
The Ventrix 2000 series of industrial rackmount computers can accommodate up to 4 plug-in cards and support, PCI and PCI Express buses. Our system reliability is backed by our unmatched 3 year warranty, with the first year on-site.
Amplicon's systems are able to offer 5~15 year life cycle.
6th, 8th and 12th generation processor options available.
Windows 11 overview video available on Amplicon YouTube Channel
Amplicon has expanded its flagship industrial computer family, the Ventrix. The new 12th gen models introduce a massive leap forward in efficiency, security features and AI capabilities. Learn more about the new Ventrix models.
Learn more about the Amplicon Industrial Rackmount PC range.
- Chassis Size
- 2 U
- CPU
- Core i7
- Memory
- 4 GB
- OS Support
- Windows 7
- Windows Emb Std 7
- Windows 10 IoT
- Linux
- Windows 10
- VMWare ESXi
- Expansion
- PCI
- PCIe
- Storage
- 1TB HDD
- Chipset
- Intel® Q170
- Memory Type
- DDR4
- CPU Generation
- 6th (Skylake)
- CPU Cores (Physical)
- 4
- Max Operating Temperature
- 60 °C
- Max Memory
- 32 GB
- Mounting
- Rack
- Chassis depth
- Standard depth
- Brand
- Ventrix
- Ventrix 2064-E2.2 Datasheet
- Datasheet 892.67 KB
- ventrix-roadmap
- Roadmaps 520.09 KB
| Code: 91040585 |
Rack kit - Ventrix & Impact 2U to 6U series, Ball bearing slide rails max 820mmD
Rack kit - Ventrix & Impact 2U to 6U series, Ball bearing slide rails max 820mmD ACH3452/ACH5452/ACH4454/ACH5514/ACH7484 |
| Code: 91140892 | S/W - Windows Embedded 7 Standard P license (x86/x64) |
| Code: 91150682 |
Software - Windows 7 Professional FeS SP1 (x86/x64)
S/W - Windows 7 Professional FeS SP1 (x86/x64) |
